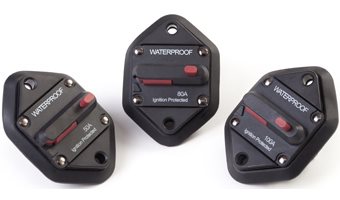

Panel Mount Circuit Breaker choice of 50, 80 or 100A With Optional Mounting Bracket
Large View

Can be Switched on & off
Panel mounted with gasket
Water Proof and Dust Proof to IP67
Choose from 50, 80 or 100amp

Panel Mount Circuit Breaker choice of 50, 80 or 100A With Optional Mounting Bracket
HCBP [price]
Used for protecting Auxiliary & Accessory circuits in
Cars, Vans, Trucks, Buses, Horse Boxes, Motor Homes,
Caravans and Marine.

Why use a circuit Breaker instead of a high amperage fuse?

High amperage fuses are not readily available.
You need to use tools to replace the high amperage fuse.
This Circuit Breaker is switchable and can be re-set when tripped.

The Tech Spec:
Amperages available: 50, 80 or 100 (choose from the list at the bottom of this page)
Voltage DC Max: 48
Stud size: 50-150amp 6mm (1/4")

Ingress Protection IP67:
Totally protected against dust ingress.
Protected against short periods of immersion in water.

Operating Temperature: -32°C to 82°C
Material: Black UL rated 94v0 thermoset plastic
Compliances: SAEJ1171    SAEJ1625

Dimensions:
Length- 75mm (2.93")
Width- 48.36mm (1.9")
Height above panel including reset button: 25mm (1")
Total Depth including reset button & stud- 54mm (2.12")
Ex Tax £26.28 Inc Tax £31.53
